MegaDrive® Vertical Series is engineered for high-density, multi-level grow environments. With centralized power and a slim, passively cooled design, it eliminates heat above the canopy, lowers infrastructure costs, and delivers consistent results—all with industry-leading efficacy up to 3.5 µMoles/J.
Compact design fits seamlessly into vertical systems, enabling tighter spacing without sacrificing output.
Run up to 27 fixtures from one remote unit—cutting install time, wiring complexity, and heat load.
Program custom light recipes for veg, flower, and finishing with two-channel spectrum control.
Passive cooling and remote drivers minimize heat load, improving climate control and reducing HVAC strain.
Reduce setup complexity by up to 80% with centralized power and chainable fixtures—no in-canopy wiring required.
Two-channel dimming fine-tunes mixed-light spectrum for denser flowering and improved crop appearance.
Removing drivers from fixtures improves efficiency and dramatically increases the lifetime of the fixtures.

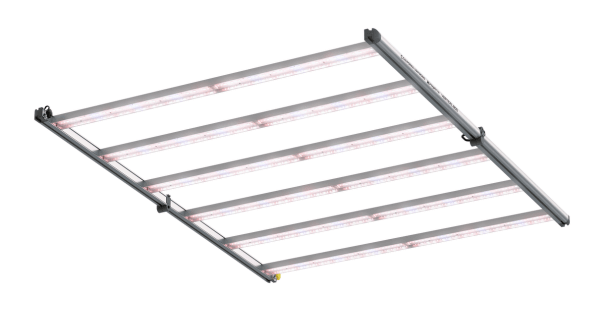

The MDV 600 is designed for mid-to-high intensity multi-tier grow operations, offering a balance of powerful output and energy efficiency. With centralized power, passive cooling, and tunable spectrum control, it supports all stages of growth with ease.
| Header Col 1 | Header Col 2 |
|---|---|
| Nominal Wattage Per Fixture | 600 |
| Operating Temprature | 0-40C (32-107F) |
| Dimensions | 46.5" x 45" x 1.25" |
| Weight | 20 Ibs |
| LED Lifetime Rating (L90) | >100,000 Hours |
| Warranty | 5 Years |
| Thermal Management | Passive |
| Dimming | 0-100% |
| Specturm control | 2 Channel 0-100% |
| Light Output | 1,850 μMoles/J |
| Efficacy | 3.93 µMoles/J |
| Heat Output | 2,040 BTU |
| Safety Compliance | UL 8750, CAN/CSA-C22.2 No. 250.13 |
| Fixture Per Power Supply | 8-16 |

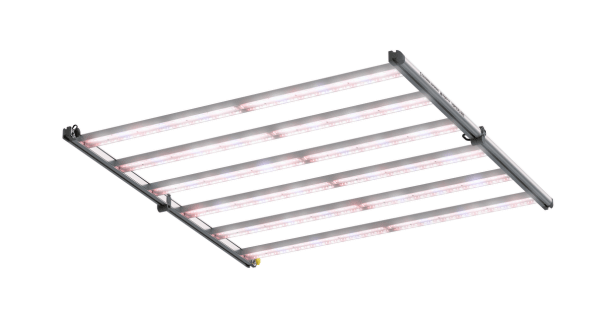

Engineered for high-demand vertical cultivation, the MDV 800 delivers maximum light intensity with low heat and superior efficiency. It’s the optimal choice for dense, high-output environments requiring uniform light coverage and scalability.
| Header Col 1 | Header Col 2 |
|---|---|
| Nominal Wattage Per Fixture | 800 |
| Operating Temprature | |
| Dimensions | 56" x 45" x 1.25" |
| Weight | 22 Ibs |
| LED Lifetime Rating (L90) | |
| Warranty | |
| Thermal Management | |
| Dimming | |
| Specturm control | |
| Light Output | 2,470 μMoles/J |
| Efficacy | |
| Heat Output | 2,720 BTU |
| Safety Compliance | |
| Fixture Per Power Supply | 6-12 |
The MDV 400 is a compact, energy-efficient solution for low-to-mid intensity vertical grow environments. Its slim design and centralized power make it ideal for early-stage growth or tiered systems with tight space requirements.
| Header Col 1 | Header Col 2 |
|---|---|
| Nominal Wattage Per Fixture | 400 |
| Operating Temprature | |
| Dimensions | 46.5" x 45" x 1.25" |
| Weight | 20 Ibs |
| LED Lifetime Rating (L90) | |
| Warranty | |
| Thermal Management | |
| Dimming | |
| Specturm control | |
| Light Output | 1,050 μMoles/J |
| Efficacy | |
| Heat Output | 1,365 BTU |
| Safety Compliance | |
| Fixture Per Power Supply | 12-27 |
Designed for greenhouse and indoor operations, the MegaDrive® UnderCanopy system boosts lower canopy production by delivering targeted light beneath the plant layer. With no electronics in the fixtures and centralized power, it’s built for durability, easy cleaning, and better airflow in dense grows.
| Header Col 1 | Header Col 2 |
|---|---|
| Installation | Greenhouse, Indoor |
| Input Voltage | <11V |
| Nominal Wattage | 120W |
| Operating Temp | 0-40°C (32-107°F) |
| Dimensions | 52” x 2.4” x 2.8” |
| Weight | 2.9 LBS |
| LED lifetime Rating L90 | >100,000 Hrs |
| Warranty | 5 Years |
| Thermal Management | Passive |
| Dimming | 0-100% |
| Specturm control | Fixed |
| Light Output (PPF) | 350 μMoles/s |
| Efficacy (Up to) | 3.2 µMoles/J |
| Heat Output | 409 BTU |
| Safety Compliance | UL 8750, CAN/CSA-C22.2 No. 250.13 |
At the core of every MegaDrive® system is the centralized power unit—available in 3kW and 10kW models. These compact yet powerful units support up to 27 fixtures, reduce heat in the grow space, and simplify installation with fewer circuits and no canopy electronics.
| Header Col 1 | Header Col 2 |
|---|---|
| Installation | Greenhouse, Indoor, Multi-level |
| Total Wattage On Power Supply | 10KW |
| Chainable # Of Fixtures | 27 |
| Power Factor | > 0.95 |
| Frequency | 50-60 Hz |
| Operating Temp | 0-40°C (32-107°F) |
| Dimension | 32" X 10" X 10.5" |
| Weight | 62 LBS |
| Warrantly | 5 Years |
| Thermal Management | Active |
| Safety Certification | UL, cUL E519648: UL 8750, CAN/CSA-C22.2 No. 250.13, CE |
| Data Connection | Bluetooth Mesh |
| Spectrum Control | 2 CHANNEL 0-100% |

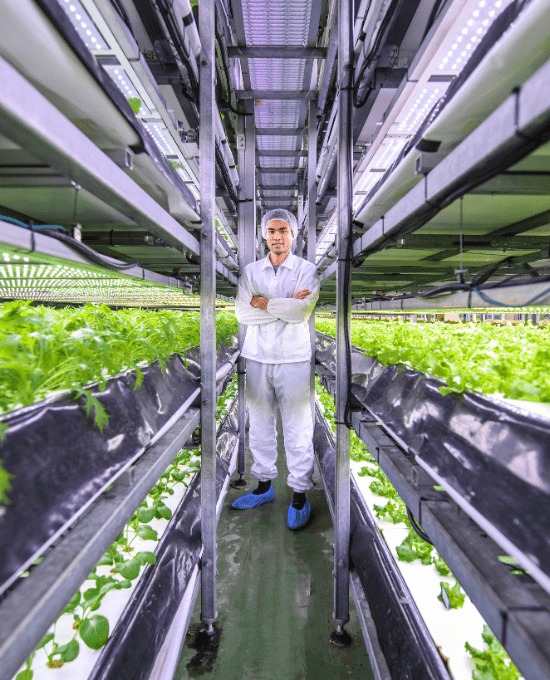

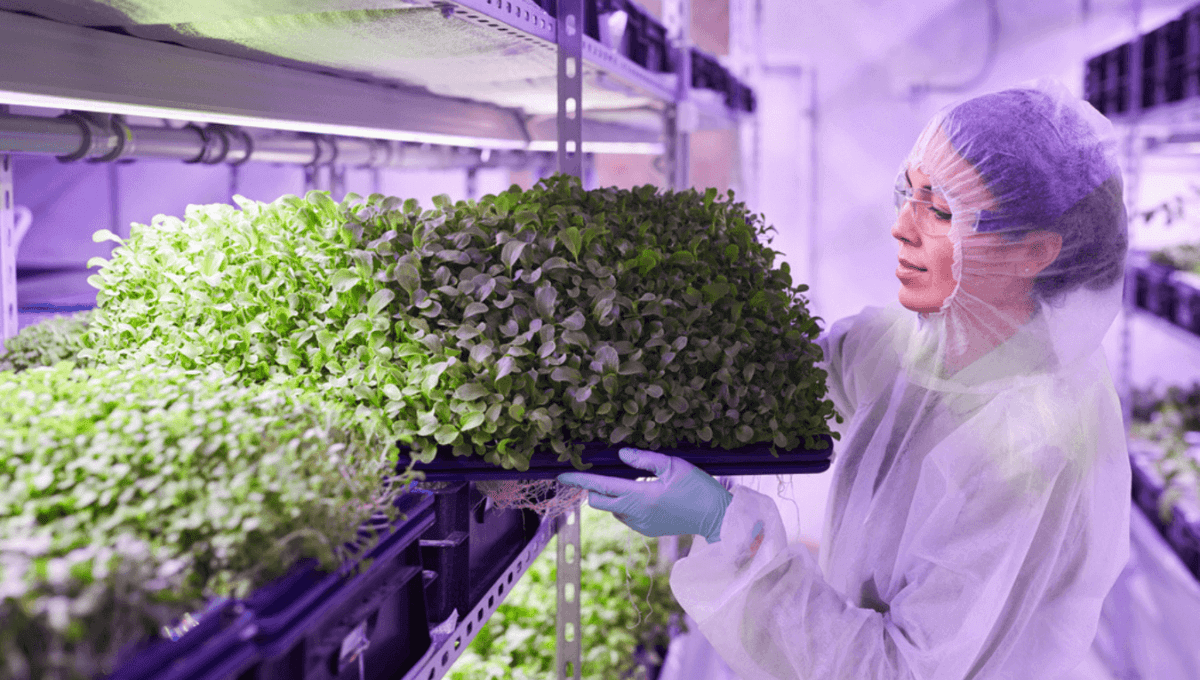

Maximize vertical space while maintaining consistent crop quality and output. MegaDrive® enables tightly stacked tiers with low-heat fixtures and spectrum tuning—ideal for greens, herbs, and microgreens in climate-controlled environments.

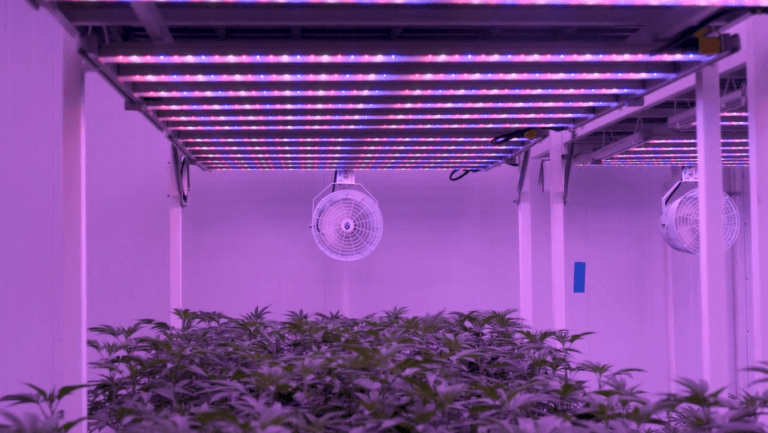

Vertical cannabis grows demand uniformity, power efficiency, and light recipes that adapt to each stage. MegaDrive® delivers all three—allowing growers to produce denser buds, better resin production, and repeatable results in tiered setups.
See how commercial growers are using MegaDrive® to boost yields, cut costs, and improve efficiency in real-world Vertical (Multi-Level) operations.
