Introducing All New MegaDrive^®

Vertical SERIES

Designed for Indoor & Multilevel Applications

Discover unparalleled results from our groundbreaking MegaDrive technology which eliminates the need for drivers and electrical power connections over the canopy thus reducing both fixtures and installation costs. The new Megadrive Vertical Series reduces fixture costs and improves operating efficiencies with up to 3.5 uMoles/J efficacy. Available in 400, 600, or 800-watt versions.

Lower fixture cost by eliminating the individual drivers
Lower installation costs by eliminating power drops over the canopty
Less heat in the grow room by eliminating the individual drivers
Digital spectrum control for optimal light settings under all phases of growth
Slim profile mounts close to the shelf
Higher efficiency – up to 3.5 micromoles per joule
Better reliability with central power supplies
Multiple control options – touch screen, wireless, third party controllers

Request a Free Quote
and Grow Consultation

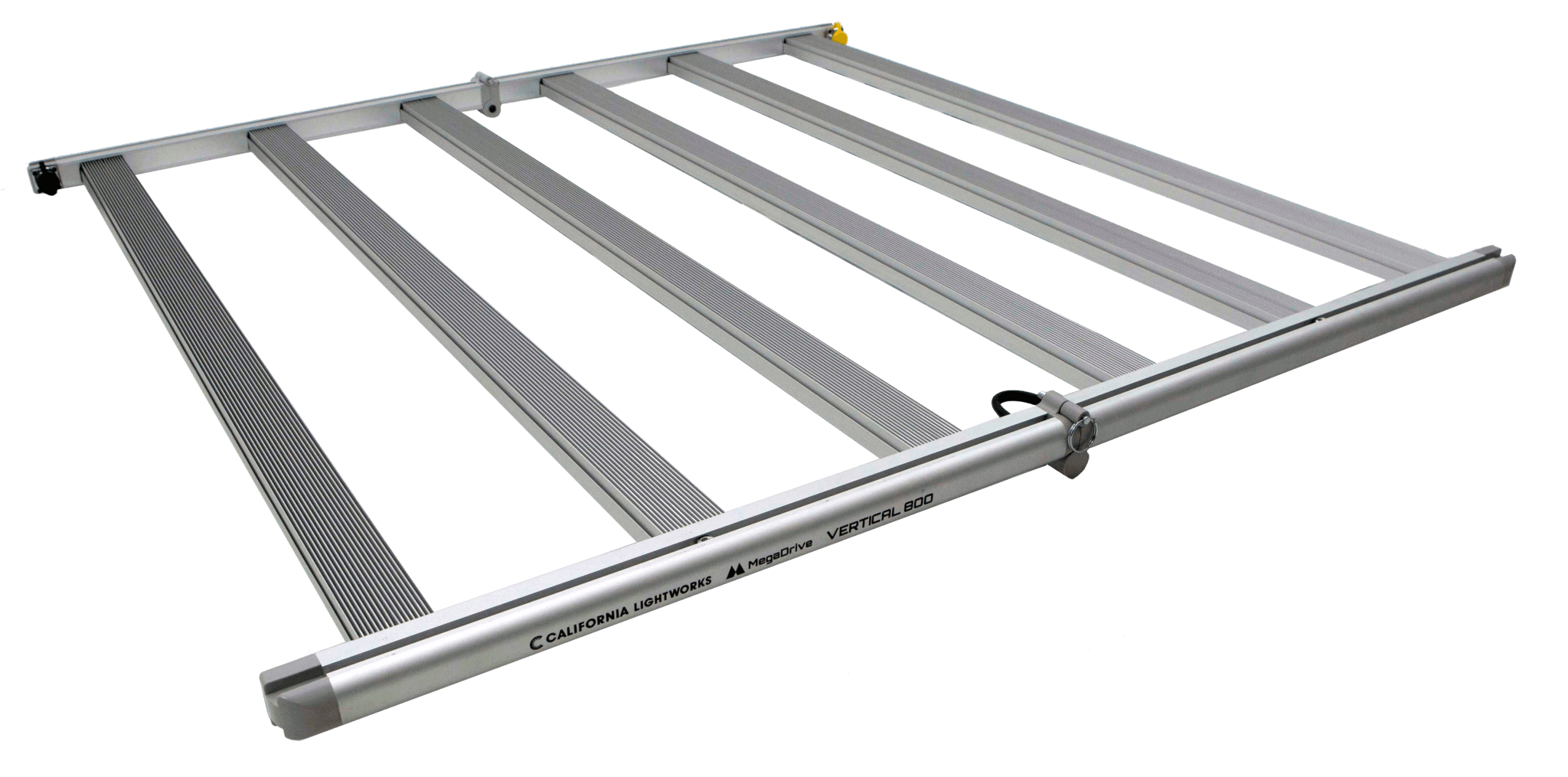

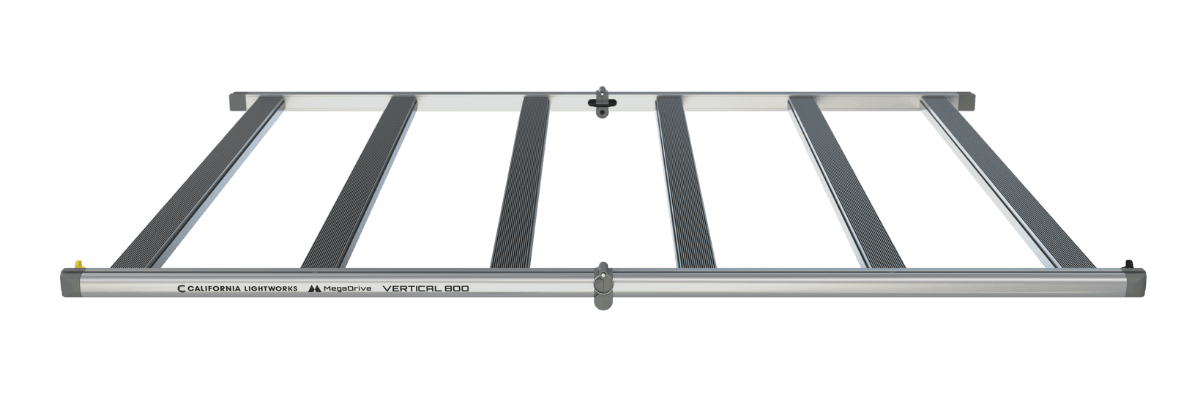

MegaDrive® Vertical

The New MegaDrive Vertical Series is designed for multi-level or single-level indoor growing. The Vertical Series is chainable, and as many as 27 lights can be run from a single power drop to save on installation costs and eliminate heat from the grow room. It also features programmable two-channel spectrum control to ensure optimum lighting in all phases of growth. Best of all, the new Megadrive Vertical Series reduces fixture costs and improves operating efficiencies with up to 3.5 uMoles/J efficacy. Available in 400, 600, or 800-watt versions.

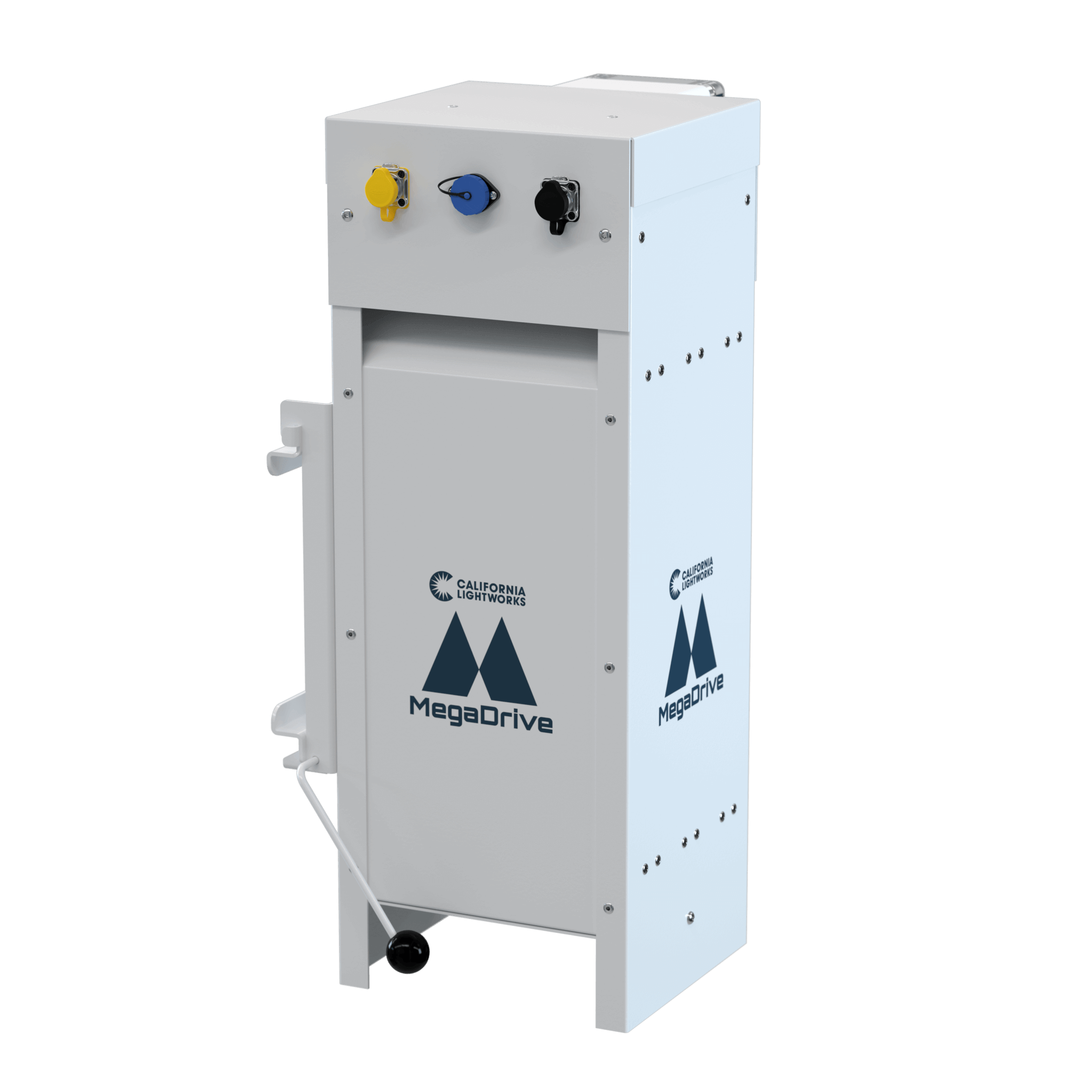

MegaDrive® Power Unit

Table Header
Total Wattage On Power Supply	:	10KW
Chainable # Of Fixtures	:	27
Power Factor	:	> 0.95
Frequence	:	50-60 Hz
Operating Temp	:	0-40°C (32-107°F)
Dimension	:	32" X 10" X 10.5"
Weight	:	62 LBS
Warrantly	:	5 Years
Thermal Management	:	Active
Safety Certification	:	UL, cUL E519648: UL 8750, CAN/CSA-C22.2 No. 250.13, CE
Data Connection	:	Bluetooth Mesh
Spectrum Control	:	2 CHANNEL 0-100%

learn More About MegaDrive® Linear 400

Greenhouse

Our new MegaDrive LED technology reduces fixture and installation costs while delivering the highest possible operating efficiencies with the lowest shade footprint per watt, of any fixture on the market.

Indoor

Multilevel (Vertical)

MegaDrive® Linear 400

The New MegaDrive® Linear 400 is specifically designed for supplemental lighting in greenhouses. It features a very small shadow effect yet covers a large area. The Linear 400 is chainable and as many as 27 lights can be run from a single power drop to save on installation costs. It also features wireless two-channel spectrum control and integrates with a wireless photo sensor for automated dimming depending on the amount of sunlight available. The Linear 400 uses passive cooling with no fans and has an IP rating of 65. Draws 380W with up to 3.5 µMoles/J efficacy.

MDL 400 Specifications


Input Voltage	:	<20 VDC
Nominal Wattage	:	400
Operating Temp	:	0-40C (32-107°F)
Dimensions	:	30.5” x 3.1” x 5.4”
Weight	:	10 LBS
LED lifetime Rating L90	:	>100,000 hours
Warranty	:	5 Years
Thermal Management	:	Passive
Dimming	:	0-100%
Specturm control	:	2 Channel 0-100%
Light Output (PPF)	:	1,044 μMoles/s
Efficacy (Up to)	:	3.5 μMoles/s
Heat Output	:	1365 BTU
Safety Compliance	:	UL 8750, CAN/CSA-C22.2 No.250.13

Greenhouse Application

For high value crops such as cannabis, supplemental greenhouse lighting is what separates highly profitable operations from struggling startups. In today’s competitive market, the lowest cost of production and year-round consistency indicates which operations will thrive and which operations will close their doors. California Lightworks strives to realize the lowest installed cost greenhouse lighting on the market. Our new MegaDrive LED technology reduces fixture and installation costs while delivering the highest possible operating efficiencies with the lowest shade footprint per watt, of any fixture on the market.

Indoor Application

For indoor growers, offering the best light is the number one factor for getting the better quality and the highest yields. Growing indoors requires lighting that can best mimic the sun and supply the right spectrum and light levels for all phases of growth – propagation, vegetation, flowering and finishing. Unlike fixed spectrum solutions such as HPS or all white LEDs. California Lightworks features digital spectrum control for the ideal intensity and spectrum for any stage of growth or types of plants. Seasonal spectrum mixes, adjustable intensity and sunrise/sunset functions are all available a the tough of a button.

Multilevel (Vertical) Application

In today’s competitive indoor growing environment with increasingly limited floor space, growing on multiple levels had become the favored solution for getting more yields per square foot and the highest returns on investment. However, the heat and humidity and high installation costs related to growing on shelves comes with its own set of problems. California Lightworks’ new MegaDrive Vertical Series reduces installation costs and removes heat generating LED drivers from the grow room. These new LED fixtures also feature two channel spectrum control for the best results in all phases of growth. The toolchest for getting better returns from vertical grows just got bigger.

Glasshouse Farms is a State
Of the Art Cannabis Operation

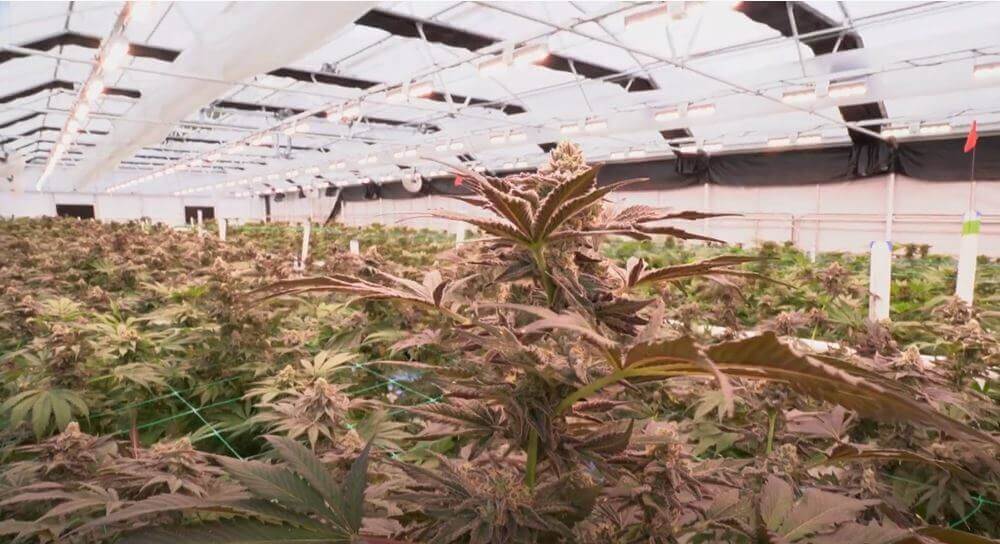

Island Breeze Greenhouse - Case Study

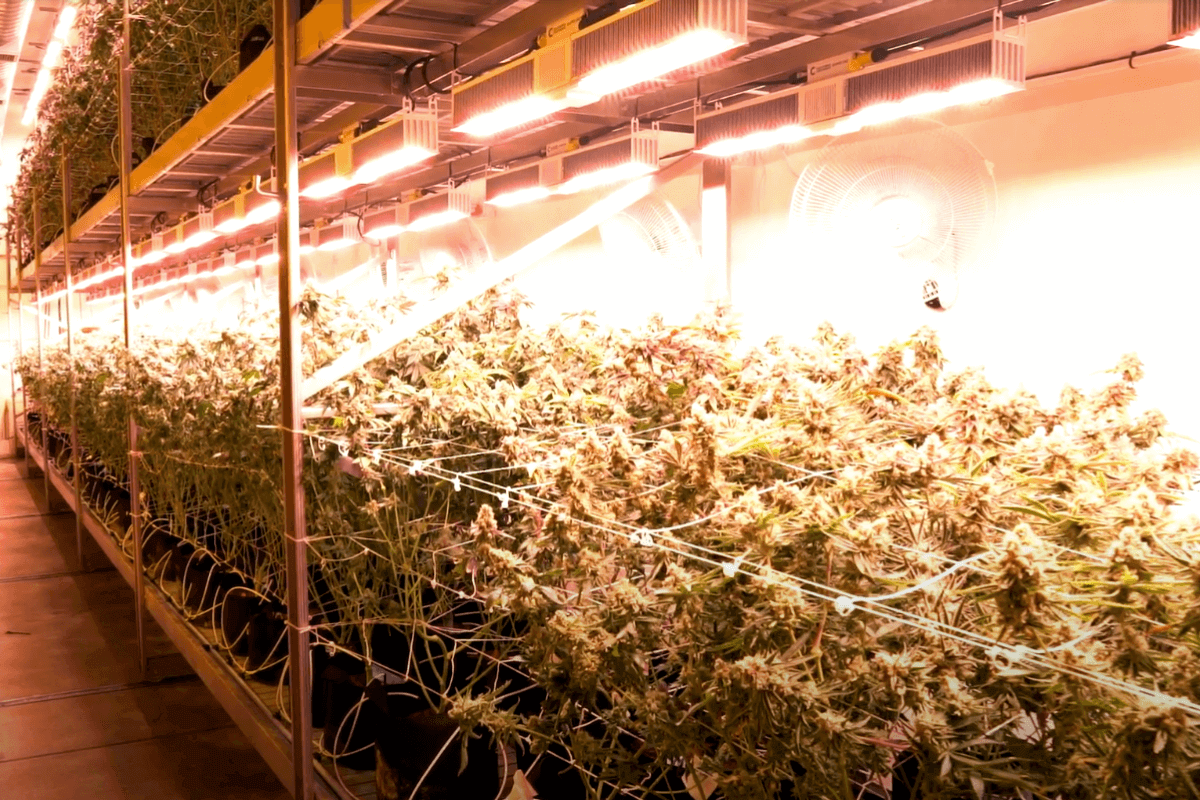

Xotics Cultivation Multi-level Operation

Replacing HPS to LED - Grow Ohio

“For several years, Exotics Cultivation in Lompoc California has been operating a typical HPS single level grow operation. They have decided to modernize and move to LEDs on two levels using the new MegaDrive LED system from California Lightworks.”
