Where Innovation Meets Cultivation
At California Lightworks, we’ve redefined commercial cultivation lighting with MegaDrive®—a centralized power LED system designed to eliminate overhead wiring, reduce installation costs, and deliver optimized spectrum control for every stage of growth.
Two-channel spectrum control and optimized intensity for faster growth, stronger plants, and higher yields.
Manufactured in the USA with complete in-house design, engineering, and support—delivering unmatched reliability and service.
Lower heat, lower power consumption, and no overhead wiring—cutting setup costs while maximizing system efficiency.

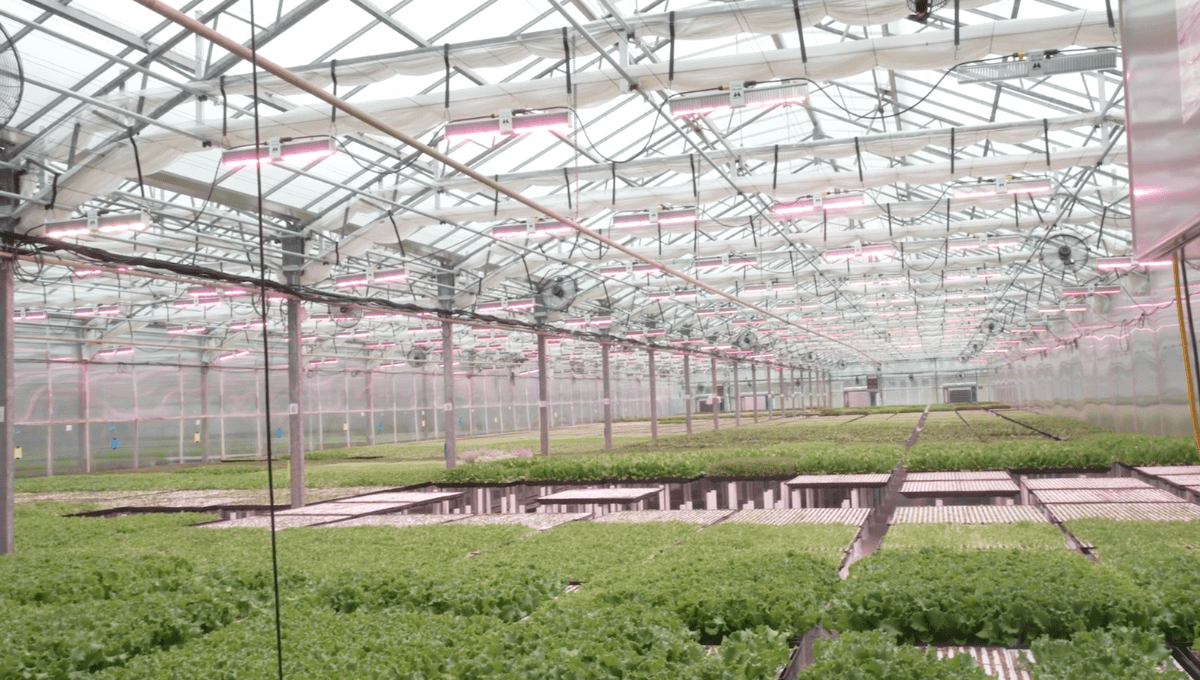

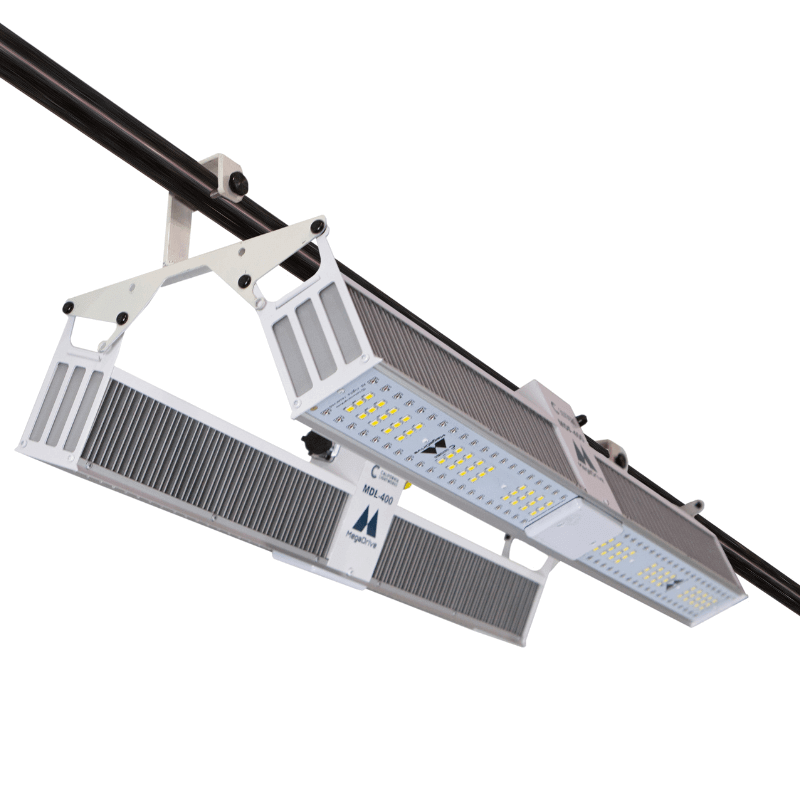

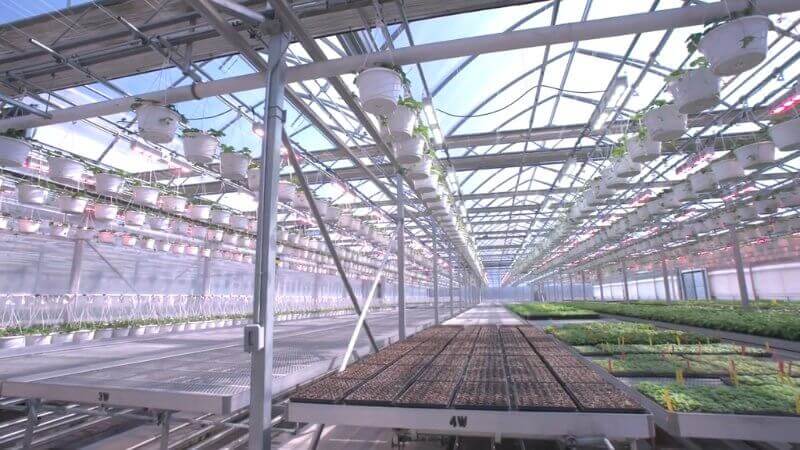

Purpose-built for greenhouse applications, the MegaDrive® Linear Series—featuring the Linear 400, Dual 400, and MDL 600—delivers high light output with minimal shadow effect. These slim-profile fixtures support up to 27 units per power drop and include digital spectrum control for consistent daylight balancing and optimized flowering across all crop types.
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Greenhouse, Indoor |
|
Input Voltage |
<20 VDC |
|
Nominal Wattage |
400W |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimensions |
30.5” x 3.1” x 5.4” |
|
Weight |
10 LBS |
|
LED lifetime Rating L90 |
>100,000 Hrs |
|
Warranty |
5 Years |
|
Thermal Management |
Passive |
|
Dimming |
0-100% |
|
Specturm control |
2 Channel 0-100% |
|
Light Output (PPF) |
1,044 μMoles/s |
|
Efficacy (Up to) |
3.93 µMoles/J |
|
Heat Output |
1365 BTU |
|
Safety Compliance |
UL 8750, CAN/CSA-C22.2 No.250.13 |
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Greenhouse, Indoor |
|
Input Voltage |
< 30V |
|
Nominal Wattage |
600W |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimensions |
30.5” x 3.1” x 5.4” |
|
Weight |
10 LBS |
|
LED lifetime Rating L90 |
>100,000 Hrs |
|
Warranty |
5 Years |
|
Thermal Management |
Passive |
|
Dimming |
0-100% |
|
Specturm control |
2 Channel 0-100% |
|
Light Output (PPF) |
1,850 μmoles/s |
|
Efficacy (Up to) |
3.93 µMoles/J |
|
Heat Output |
2150 BTU |
|
Safety Compliance |
UL 8750, CAN/CSA-C22.2 No.250.13 |

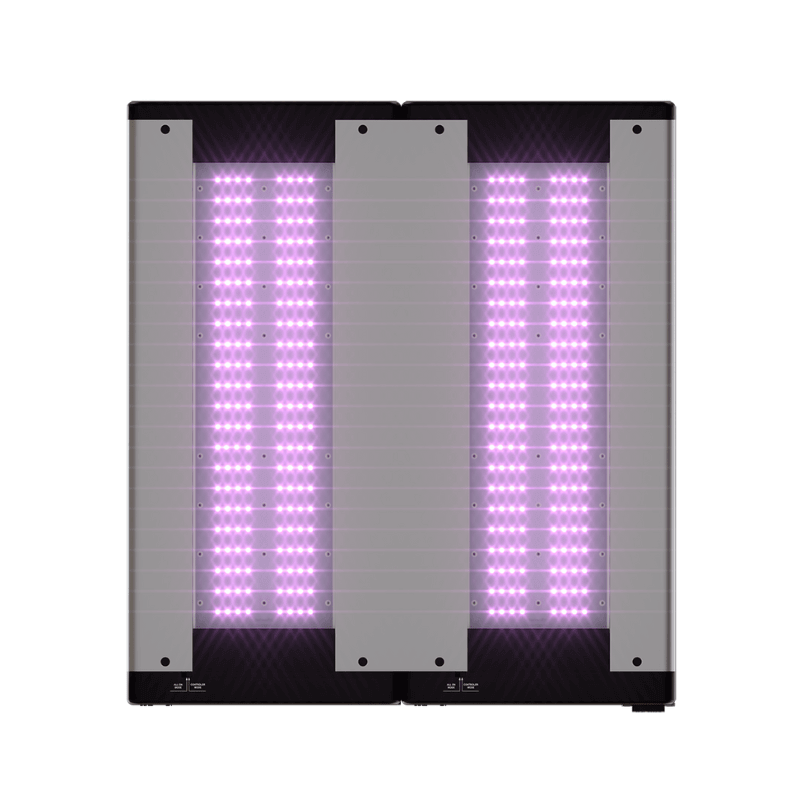

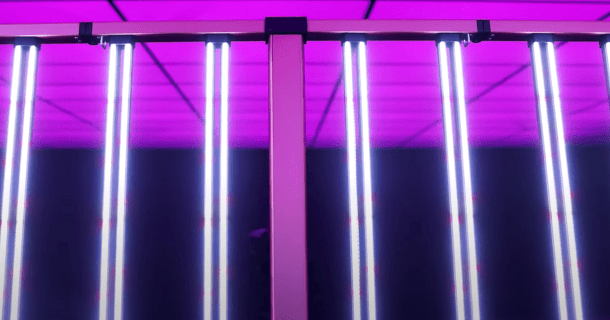

The Vertical Series is engineered for single and multi-tier indoor grows. Available in 400W, 600W, and 800W models, it offers chainable design, two-channel spectrum control, and centralized power—maximizing efficiency, reducing heat, and supporting every growth stage.
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Multi-Level, Indoor |
|
Nominal Wattage |
400W |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimensions |
46.5” x 45” x 1.25” |
|
Weight |
16 LBS |
|
LED lifetime Rating L90 |
>100,000 Hrs |
|
Warranty |
5 Years |
|
Thermal Management |
Passive |
|
Dimming |
0-100% |
|
Specturm control |
2 Channel 0-100% |
|
Light Output (PPF) |
1,070 µMoles/s |
|
Efficacy (Up to) |
Up to 3.93 µMoles/J |
|
Heat Output |
1,365 BTU |
|
Safety Compliance |
UL 8750, CAN/CSA-C22.2 No.250.13 |
|
Fixture Per Power Supply |
MDP-3KW 4-8 / MDP-10KW 14-27 |
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Multi-Level, Indoor |
|
Nominal Wattage |
600W |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimensions |
46.5” x 45” x 1.25” |
|
Weight |
16 LBS |
|
LED lifetime Rating L90 |
>100,000 Hrs |
|
Warranty |
5 Years |
|
Thermal Management |
Passive |
|
Dimming |
0-100% |
|
Specturm control |
2 Channel 0-100% |
|
Light Output (PPF) |
2,120 µMoles/s |
|
Efficacy (Up to) |
Up to 3.93 µMoles/J |
|
Heat Output |
2,040 BTU |
|
Safety Compliance |
UL 8750, CAN/CSA-C22.2 No.250.13 |
|
Fixture Per Power Supply |
MDP-3KW 3-5 / MDP-10KW 8-16 |
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Multi-Level, Indoor |
|
Nominal Wattage |
800W |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimensions |
46.5/56.5” x 45” x 1.25” |
|
Weight |
16/22 LBS |
|
LED lifetime Rating L90 |
>100,000 Hrs |
|
Warranty |
5 Years |
|
Thermal Management |
Passive |
|
Dimming |
0-100% |
|
Specturm control |
2 Channel 0-100% |
|
Light Output (PPF) |
2,410 µMoles/s |
|
Efficacy (Up to) |
Up to 3.93 µMoles/J |
|
Heat Output |
2,720 BTU |
|
Safety Compliance |
UL 8750, CAN/CSA-C22.2 No.250.13 |
|
Fixture Per Power Supply |
MDP-3KW 2-4 / MDP-10KW 6-12 |
Designed for greenhouse and indoor operations, the MegaDrive® UnderCanopy system boosts lower canopy production by delivering targeted light beneath the plant layer. With no electronics in the fixtures and centralized power, it’s built for durability, easy cleaning, and better airflow in dense grows.
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Greenhouse, Indoor |
|
Input Voltage |
<11V |
|
Nominal Wattage |
120W |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimensions |
52” x 2.4” x 2.8” |
|
Weight |
2.9 LBS |
|
LED lifetime Rating L90 |
>100,000 Hrs |
|
Warranty |
5 Years |
|
Thermal Management |
Passive |
|
Dimming |
0-100% |
|
Specturm control |
Fixed |
|
Light Output (PPF) |
387 μMoles/s |
|
Efficacy (Up to) |
3.2 µMoles/J |
|
Heat Output |
409 BTU |
|
Safety Compliance |
387 μMoles/sUL 8750, CAN/CSA-C22.2 No. 250.13 |

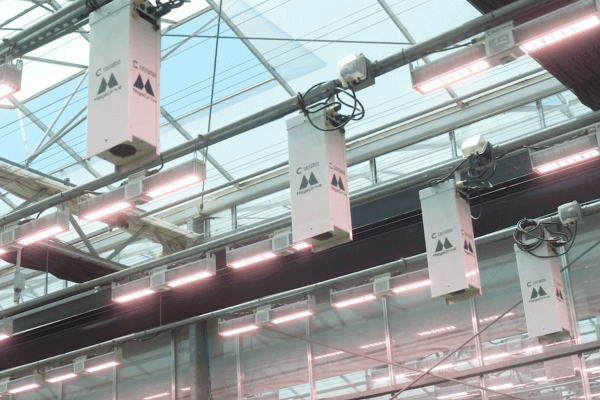

At the core of every MegaDrive® system is the centralized power unit—available in 3kW and 10kW models. These compact yet powerful units support up to 80 fixtures, reduce heat in the grow space, and simplify installation with fewer circuits and no canopy electronics.
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Greenhouse, Indoor, Multi-level |
|
Total Wattage |
3KW |
|
Chainable # Of Fixtures |
Up to 24 |
|
Power Factor |
0.95 |
|
Frequency |
50-60 Hz |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimension |
27" x 9.5" x 4.5" |
|
Weight |
29.5 LBS |
|
Warrantly |
5 Years |
|
Thermal Management |
Active |
|
Safety Certification |
ANSI/CAN/UL 8800:2019, CE |
|
Data Connection |
0-10V |
|
Spectrum Control |
2 CHANNEL 0-100% |
|
Service Life |
Bluetooth Mesh |
|
Heat Output |
511 BTU |
|
Header Col 1
|
Header Col 2
|
|---|---|
|
Installation |
Greenhouse, Indoor, Multi-level |
|
Total Wattage |
10KW |
|
Chainable # Of Fixtures |
Up to 80 |
|
Power Factor |
0.95 |
|
Frequency |
50-60 Hz |
|
Operating Temp |
0-40°C (32-107°F) |
|
Dimension |
32" X 10" X 10.5" |
|
Weight |
62-72 LBS |
|
Warrantly |
5 Years |
|
Thermal Management |
Active |
|
Safety Certification |
ANSI/CAN/UL 8800:2019, CE |
|
Data Connection |
0-10V |
|
Spectrum Control |
2 CHANNEL 0-100% |
|
Service Life |
Bluetooth Mesh |
|
Heat Output |
1705 BTU |

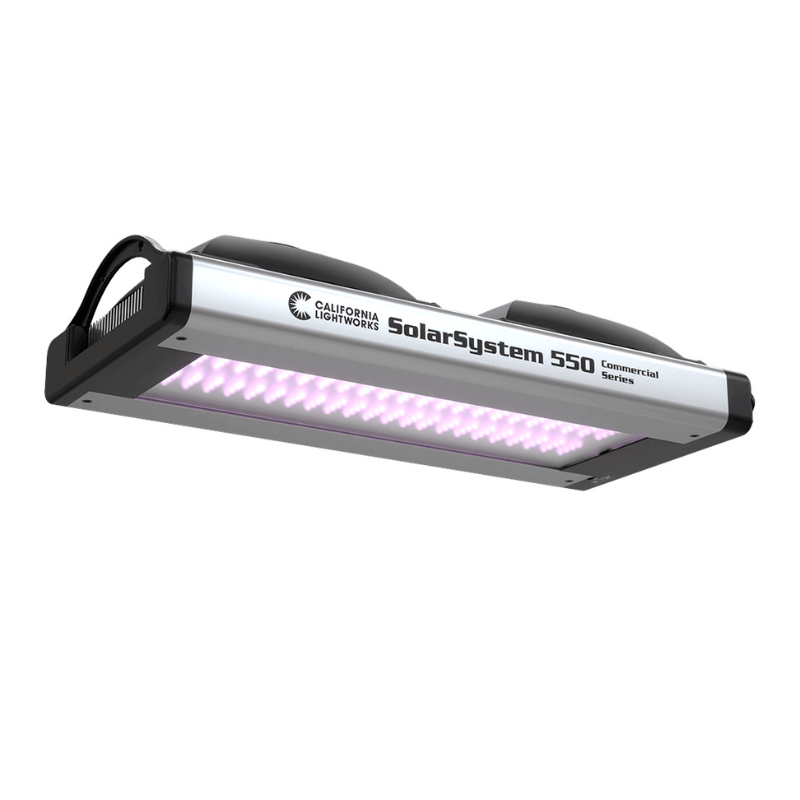

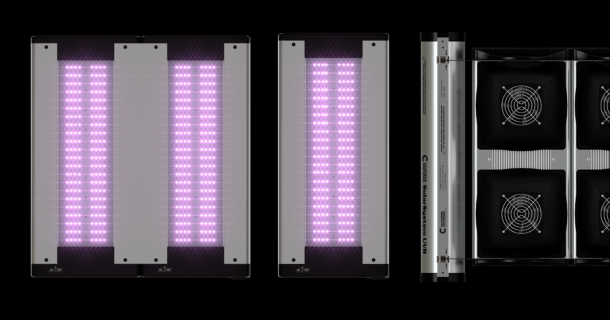

Advanced LED grow lights with programmable spectrum control for serious growers.

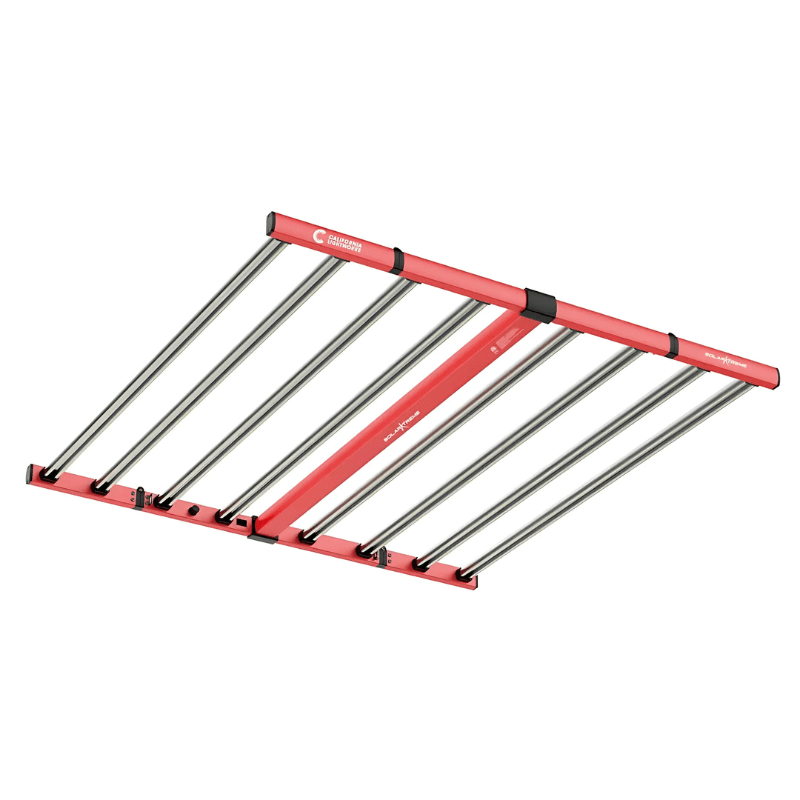

Full-spectrum, plug-and-play LED lighting designed for powerful home cultivation.
MegaDrive® has revolutionized cultivation—whether in greenhouses, indoor, or vertical farms—by cutting costs, increasing yields, and improving crop quality. Trusted by hundreds of growers across all applications.
Explore our range of high-performance LED grow lights designed to maximize plant growth, efficiency, and yield.
